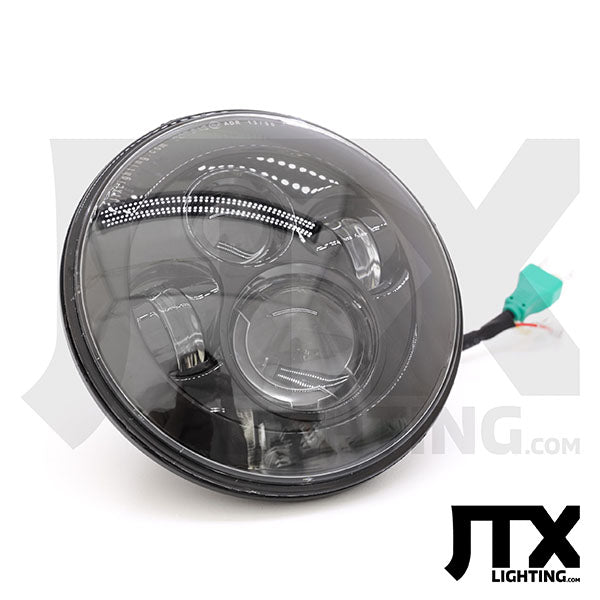

JTX 7″ Round LED Headlights

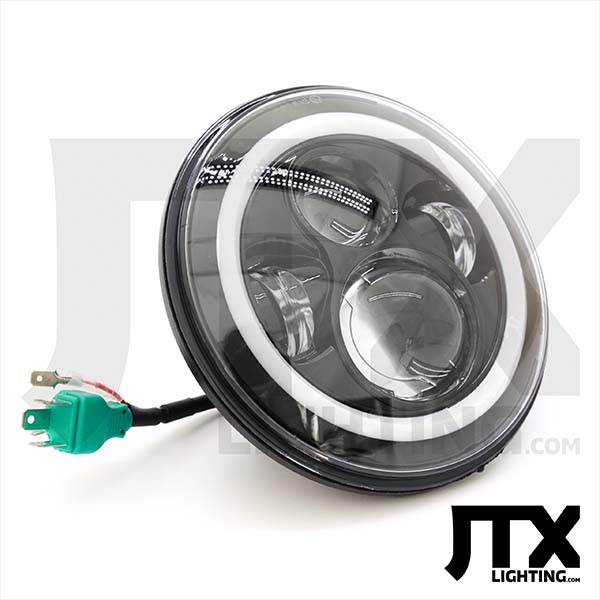

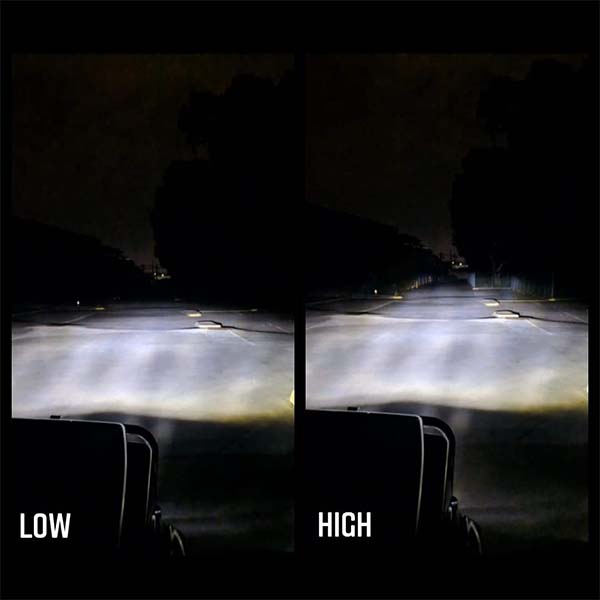

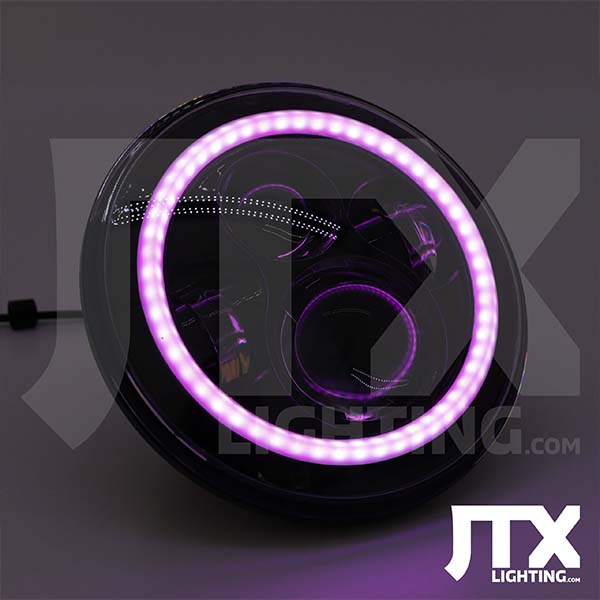

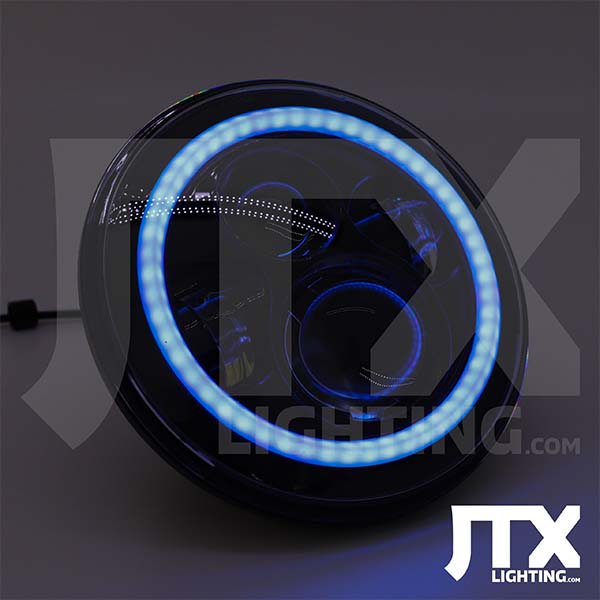

This is for one pair of JTX 7″ Round LED Headlights featuring impressive range, good spread, colourful halos and are tough as nails (which is why they have a lifetime warranty!). These draw less power than your regular halogen / HID globes too, and are ADR approved, meaning they’re legal in every state. If you select the Toyota/Suzuki option, these lights will come with a pair of CANBUS Load Modules to resolves the negative switching issues in some Toyotas. Selecting this option doesn’t cost any extra either!

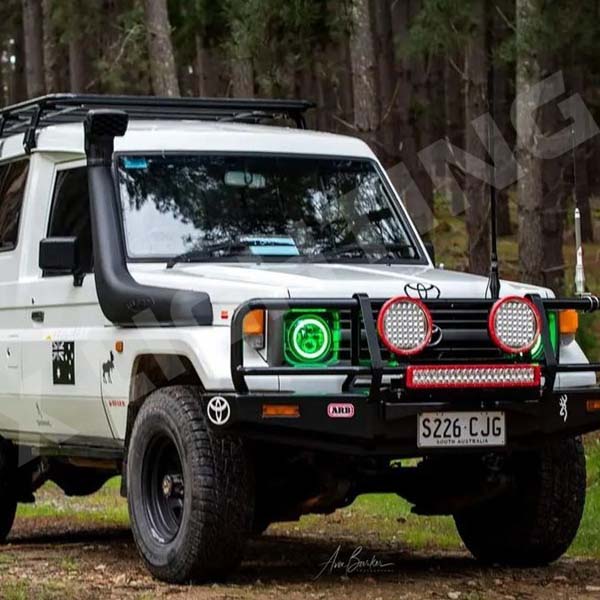

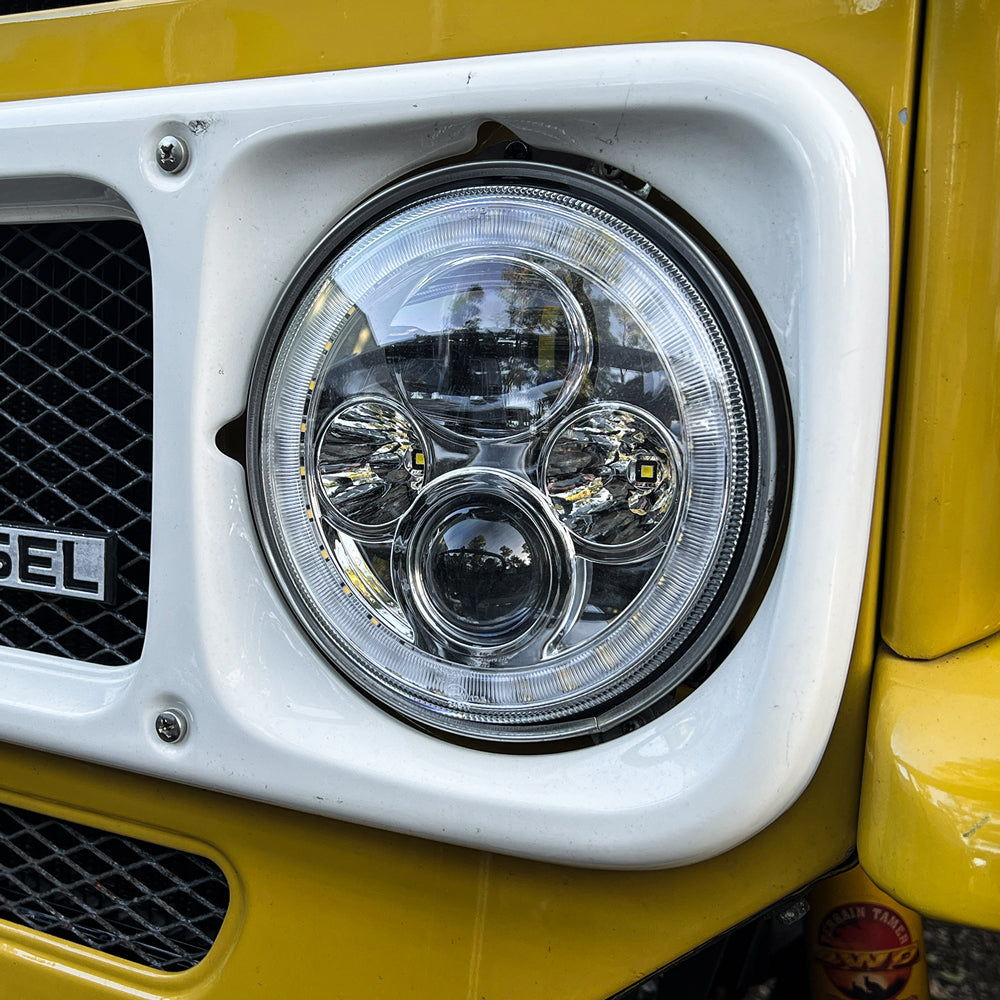

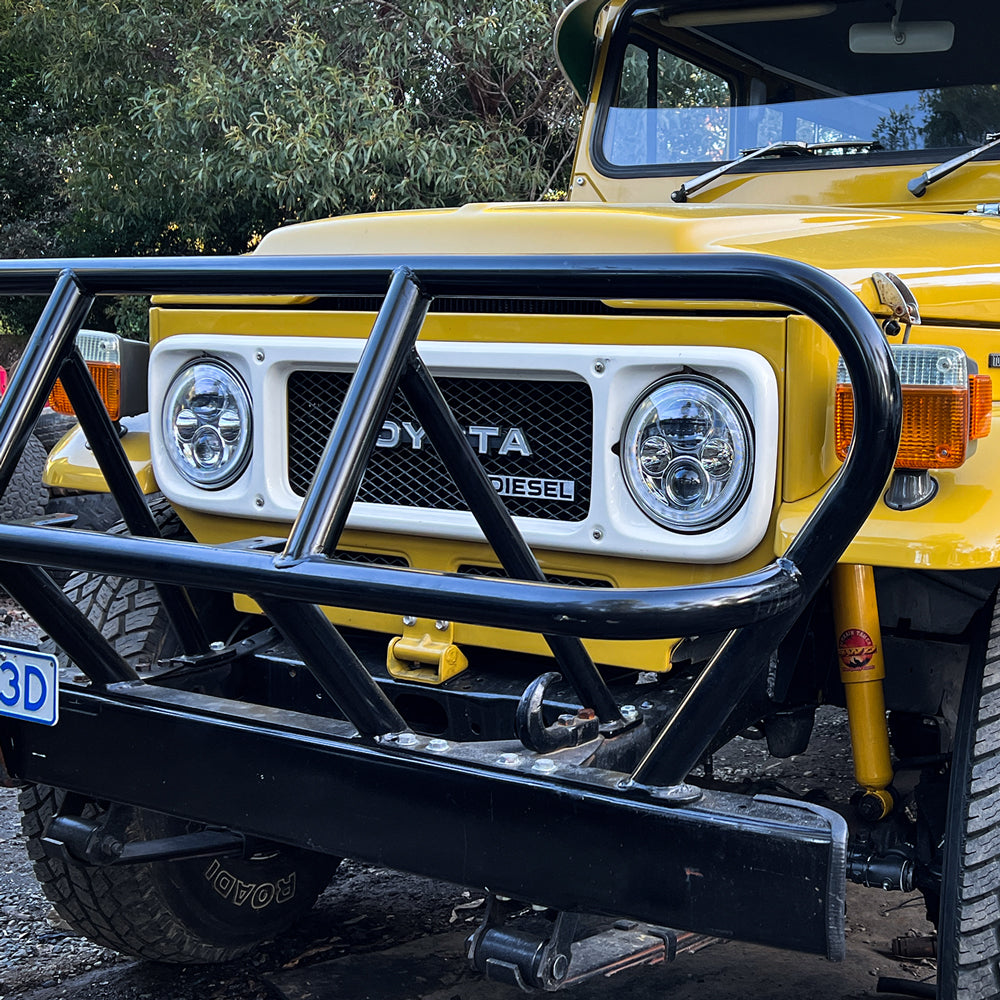

These are 7″ round headlights and they fit all 7″ round applications such as 40 Series and early 60 Series Landcruisers, Patrols, Suzuki’s and even Jeeps. They are to suit Australian left side of road and are legal in all states. These lights have their ADR certification stamped on the lens and come with an ADR certificate (handy to keep in the glovebox if the red and blue starts carrying on).

They have breathers so as to avoid fogging or condensation and there is an optional breather kit (just like diff breathers) for the serious off roader performing bonnet depth creek-crossings.

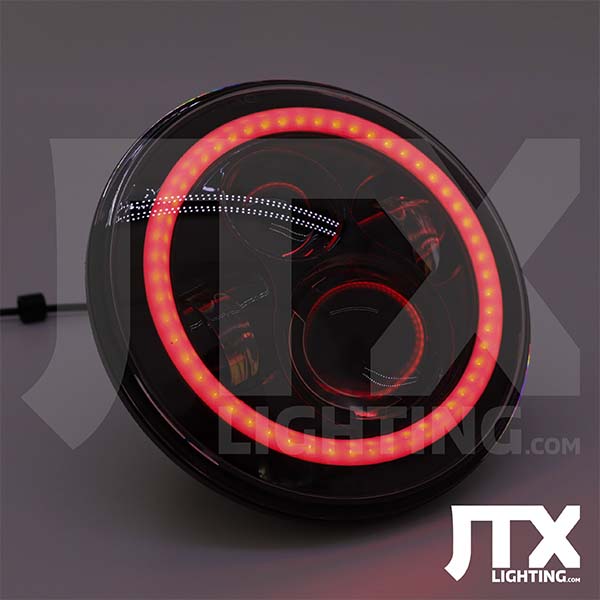

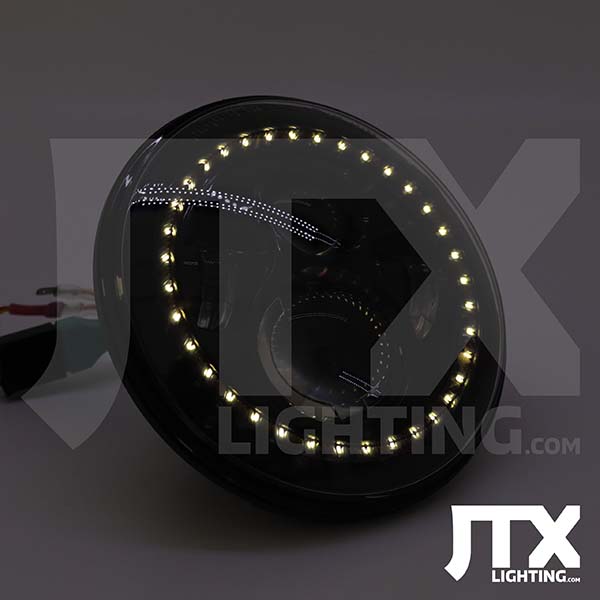

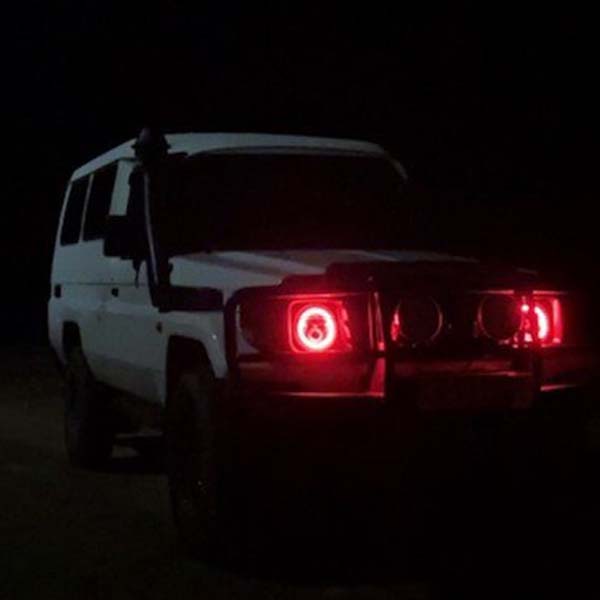

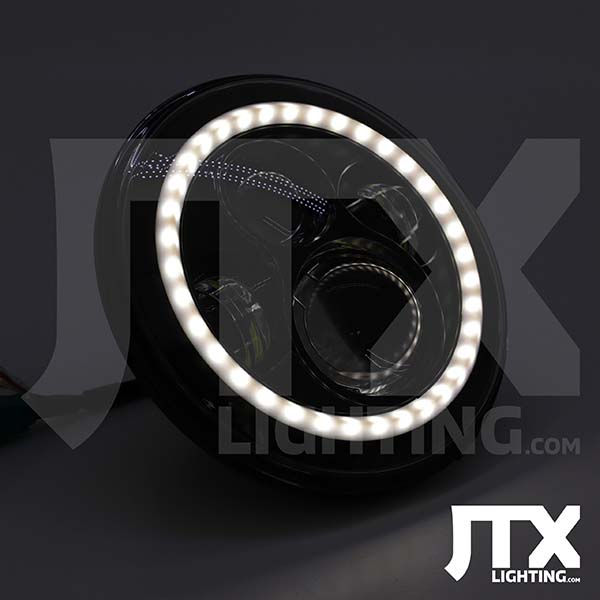

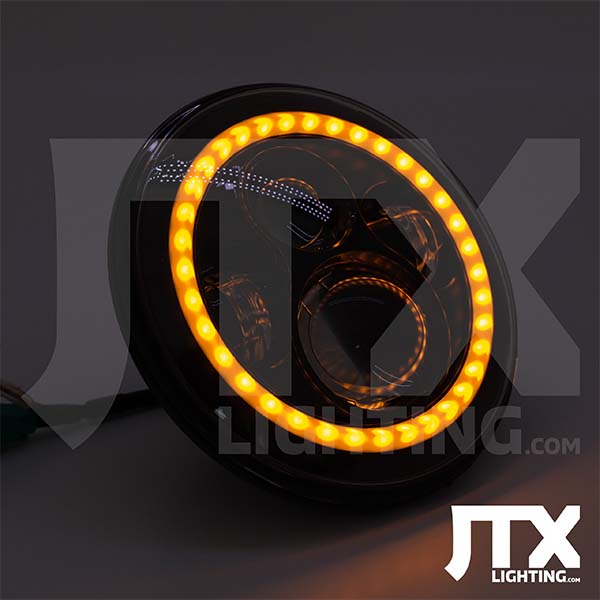

Wiring up the Daytime Running Lights is very easy, they get their earth through the 3-Pin H4 headlight socket. The Red Wire is to power the primary DRL colour, so this is wired to the parkers or to a power source that comes on with the ignition. The Yellow Wire powers the secondary colour, which is typically Amber, in which case connect to indicator or to a separate switch if you have a twin colour set up like red and white.

Specs:

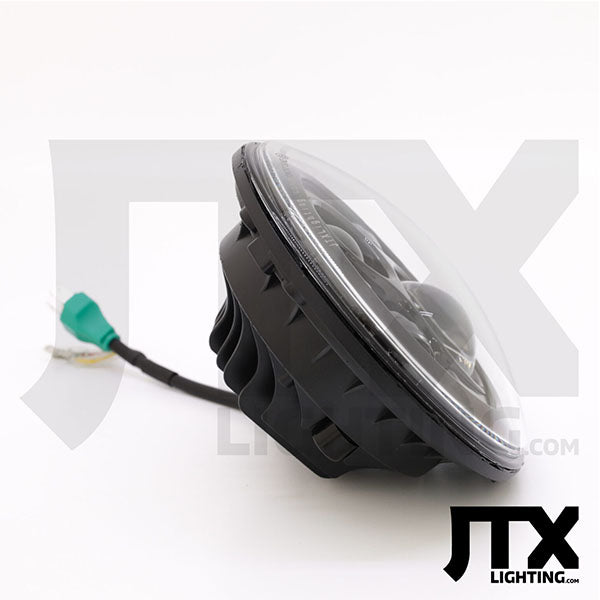

• The lights have a depth of 65mm, and are 178mm in diameter.
• Headlight amp draw: 3A each.
• Halo amp draw: 0.35A each.
