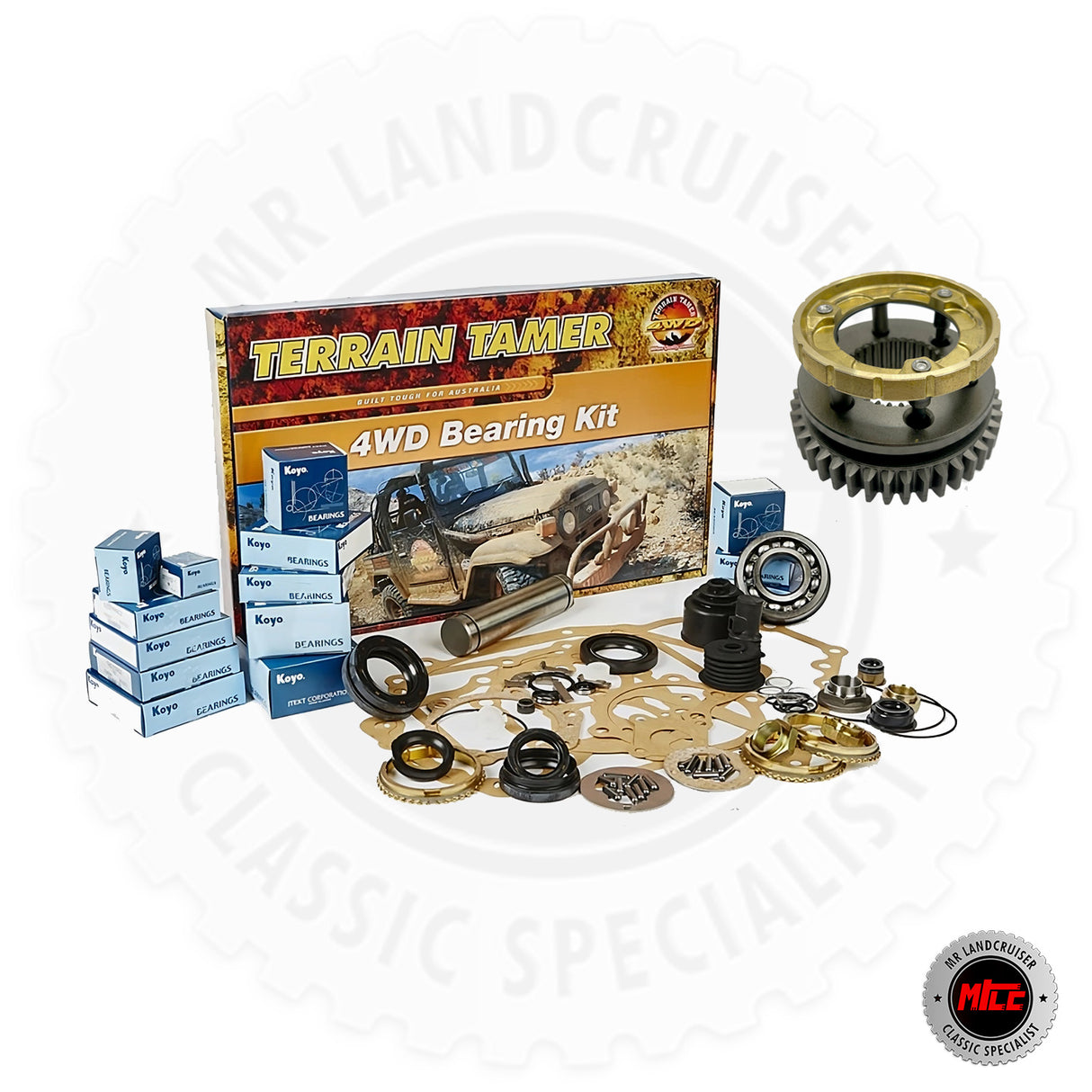

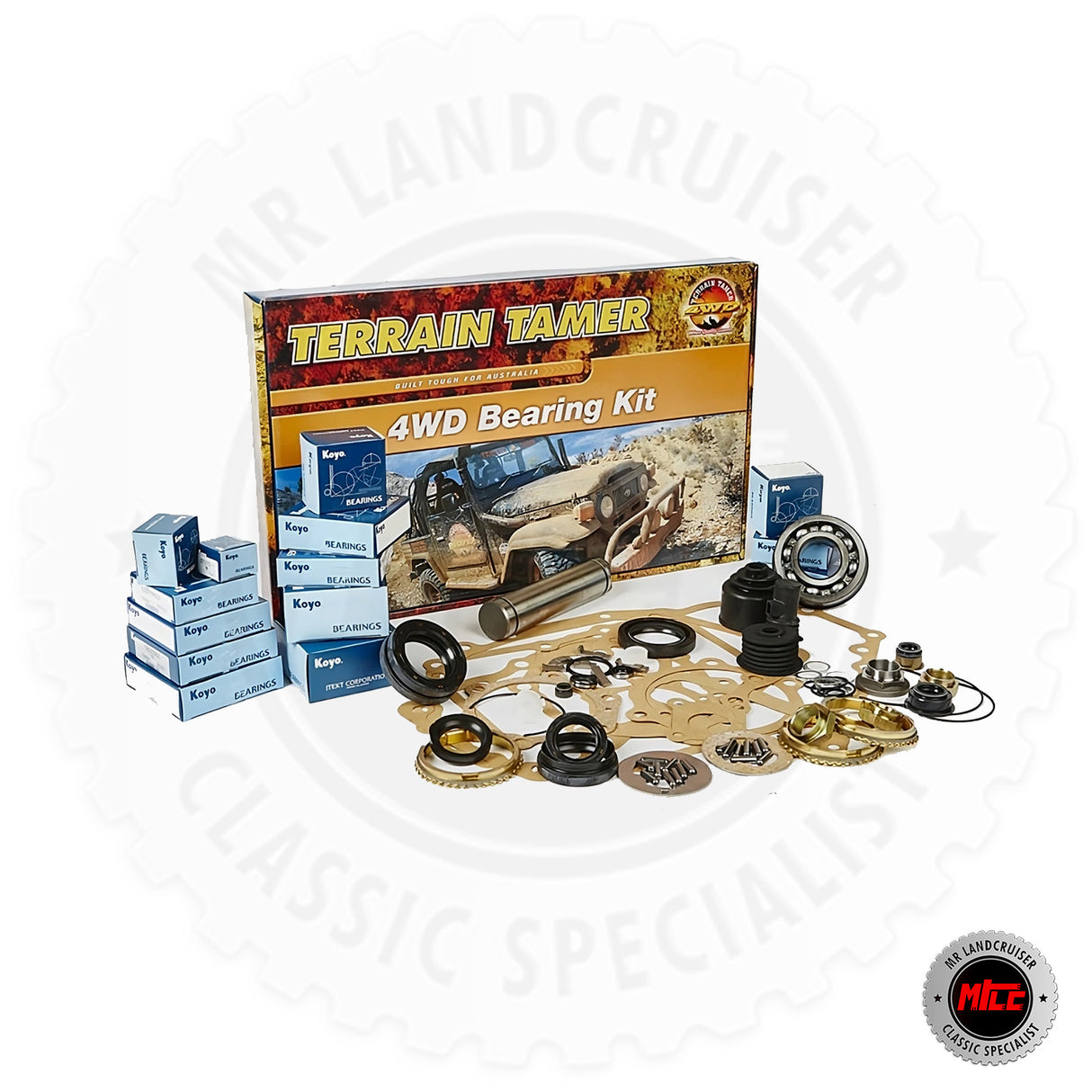

H41 4-Speed Gearbox Rebuild Kit

This gearbox rebuild kit is for the H41 4-Speed gearbox found in the 40 and 60 Series Landcruisers, there are two variations of the H41 gearbox; the early version has single piece transfer case and was produced from 03/1972 to 12/1979, the later version came with a split case transfer and was produced from 01/1980 to 10/1984.

APPLICATION NOTE: This rebuild kit suits both versions of the H41 gearbox, this will not work with the H42 gearbox which is commonly found in US and Canadian vehicles. The H42 looks identical to the single piece transfer H41 (they share the same casing) but the H41 has a 4.95:1 low gear vs the 3.5:1 in a H42.

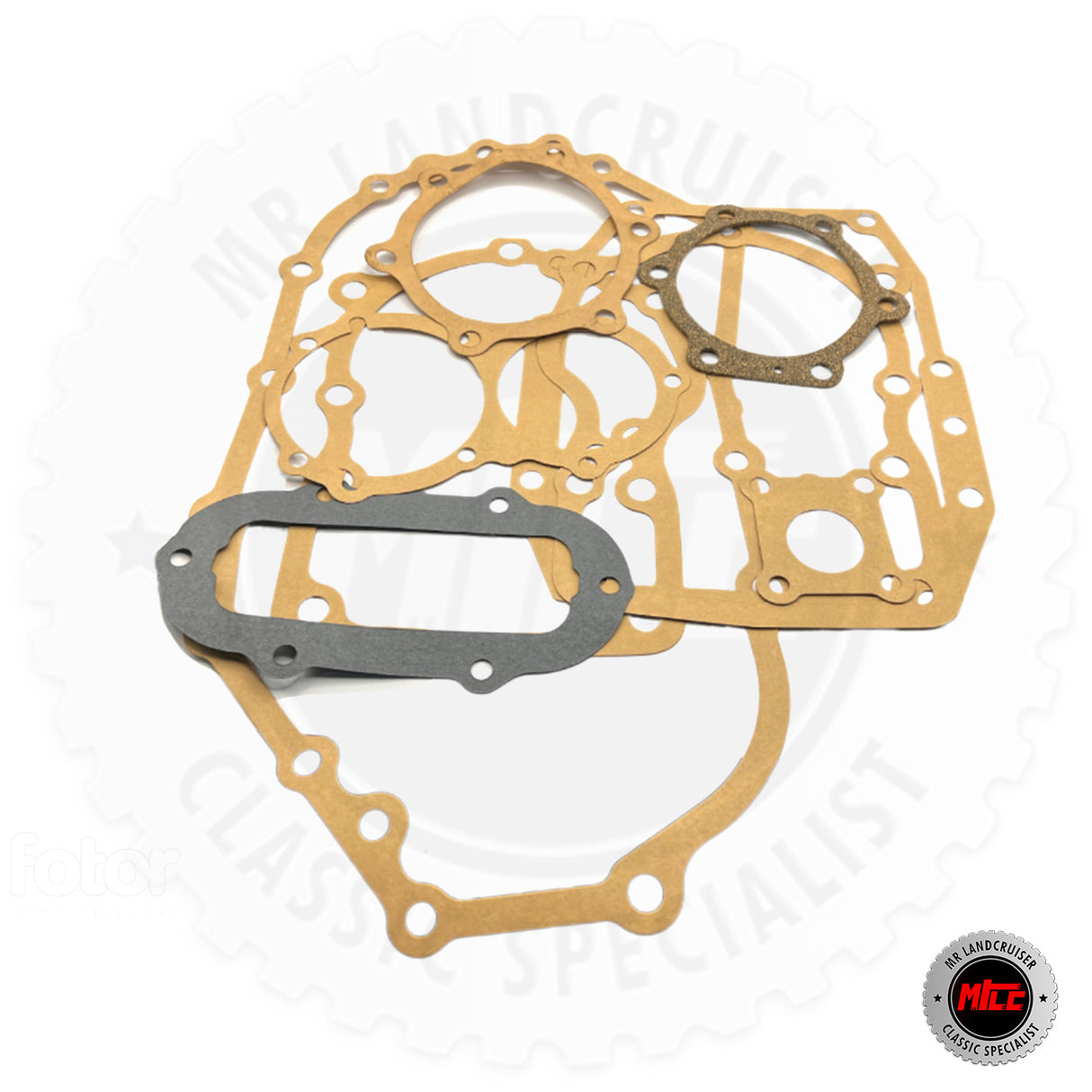

The Terrain Tamer kit includes everything required for a gearbox rebuild, including all new Japanese bearings, gaskets and seals (eg; Koyo bearings and seals) and all components are covered by a nationwide 12 month warranty.

Every gearbox rebuilt at Mr Landcruiser also includes a new 1st & 2nd Synchro Hub assembly (no-one wants a grabby 1st and 2nd shift on a freshly rebuilt gearbox), we do this at a discount and the same applies here. Select the Gearbox Rebuild Kit with 1st/2nd Synchro and save over $100.

VEHICLE FITMENT:

Toyota Landcruiser 40 Series –

• BJ40 B Diesel Engine 4 Speed (03/1975 – 10/1980)
• BJ42 3B Diesel Engine 4 Speed (08/1980 – 10/1984)
• BJ46 3B Diesel Engine 4 Speed (08/1980 – 11/1985)
• FJ40 F/2F Petrol Engine 4 Speed (03/1973 – 10/1984)
• FJ45 F/2F Petrol Engine 4 Speed (03/1973 – 10/1984)
• HJ45 H Diesel Engine 4 Speed (03/1973 – 10/1980)
• HJ47 H Diesel Engine 4 Speed (08/1980 – 10/1984)

Toyota Landcruiser 60 Series –

• BJ60 3B Diesel Engine 4 Speed (08/1980 – 10/1982)
• FJ60 2F Petrol Engine 4 Speed (08/1980 – 10/1982)
• HJ60 2H Diesel Engine 4 Speed (08/1980 – 10/1982)
